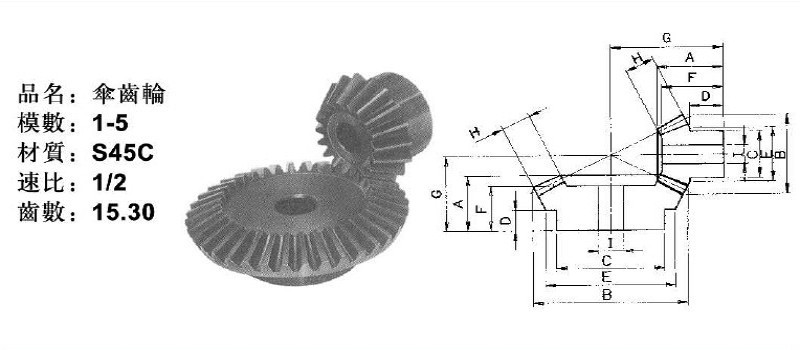

傘齒輪-A101530S

產品規格

品名編號	模數	齒數	A	B	C	D	E	F	G	H	I
A101530S	1	15	18	16.79	12.50	11.5	12.5	17.31	27.35	6	6
A101530L	1	30	17	30.89	28	11.5	28	15.62	21.24	6	8
A151530S	1.5	15	22	25.18	18.25	11.5	18.25	21	35.15	10	8
A151530L	1.5	30	22	46.34	36	12.5	40.64	19.29	27.97	10	10
A201530S	2	15	25	33.58	25	12.5	25	23.66	43.69	12	10
A201530L	2	30	25	61.79	48	13.5	55	21.52	33.48	12	12
A251530S	2.5	15	31	41.97	31	15	31	29.16	54.36	15	12
A251530L	2.5	30	30	77.24	55	15.5	68.63	24.98	40.61	15	15
A301530S	3	15	35	50.37	37	16	37	33.02	63.04	18	12
A301530L	3	30	35	92.68	65	16.5	81.28	28.44	47.73	18	15
A401530S	4	15	50	67.16	50	24	50	47.39	86.52	25	16
A401530L	4	30	48	123.58	80	25	110.16	41.16	64.58	25	20
A501530S	5	15	65	83.94	62	33.5	62	61.68	111.73	30	20
A501530L	5	30	54	154.47	120	25	137.25	44.85	75.21	30	25
