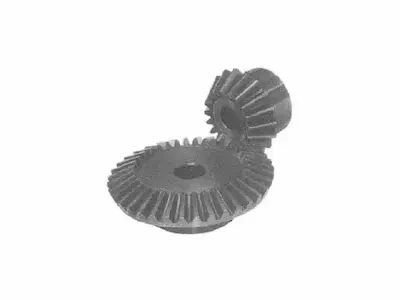

傘齒輪-A101545S

產品規格

品名編號	模數	齒數	A	B	C	D	E	F	G	H	I
A101545S	1	15	14.5	16.90	12	8	12	13.94	31.07	6	6
A101545L	1	45	12.5	45.63	42	5.5	42	9.96	17.39	6	6
A151545S	1.5	15	23.5	25.35	18	13	18	22.70	47.42	10	8
A151545L	1.5	45	21	68.45	40	11.5	64	16.80	28.06	10	10
A201545S	2	15	30	33.79	24	14.5	24	28.96	60.34	15	10
A201545L	2	45	31	91.26	65	17.5	85	27.13	39.96	15	12
A251545S	2.5	15	40	42.24	30	19.5	30	38.79	76.75	20	12
A251545L	2.5	45	38	114.08	70	21.5	106.73	31.62	48.85	20	15
A301545S	3	15	45	50.69	35	21	35	43.14	90.03	23	15
A301545L	3	45	39	136.90	80	21.5	129.47	31.82	52.3	23	21
A401545S	4	15	54	67.59	49.5	23	49.5	51.74	114.67	30	16
A401545L	4	45	51	182.53	90	23	169.25	40.42	68.92	30	20
A501545S	5	15	67	84.49	60	30	60	63.86	145.18	35	20
A501545L	5	45	50	228.16	120	20	214.72	37.73	73.09	35	25
