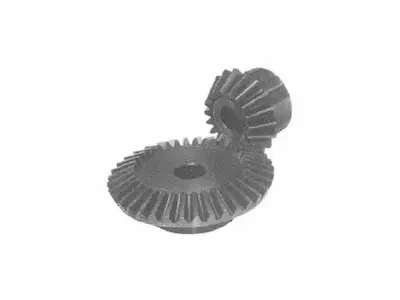

傘齒輪-A101836S

產品規格

品名編號	模數	齒數	A	B	C	D	E	F	G	H	I
A101836S	1	18	16	19.79	15.5	9.5	15.5	15.25	28.32	6	6
A101836L	1	36	14	36.89	33	7.5	33	11.69	19.69	6	8
A151836S	1.5	18	24	29.68	23	12	23	23.05	39.86	12	8
A151836L	1.5	36	24	55.34	40	14	50	21.29	31.33	12	10
A201836S	2	18	34	39.58	30	18.5	30	32.65	56.02	15	12
A201836L	2	36	28	73.79	60	14	66	24.58	38.17	15	12
A251836S	2.5	18	36	79.47	38.5	17.5	38.5	34.29	64.18	18	12
A251836L	2.5	36	32	94.24	75	17	84.52	27.87	45.01	18	16
A301836S	3	18	48	59.37	46	23	46	46.10	78.85	25	16
A301836L	3	36	39	110.68	70	18.5	100.17	34.57	53.25	25	20
A401836S	4	18	55	79.16	62	26	62	51.61	100.79	28	20
A401836L	4	36	47	147.58	95	22.5	134.16	37.28	68.14	28	20
A501836S	5	18	69	98.94	77	37.5	77	65.38	130.6	30	25
A501836L	5	36	56	184.47	100	25	165.47	44.47	84.44	30	25
