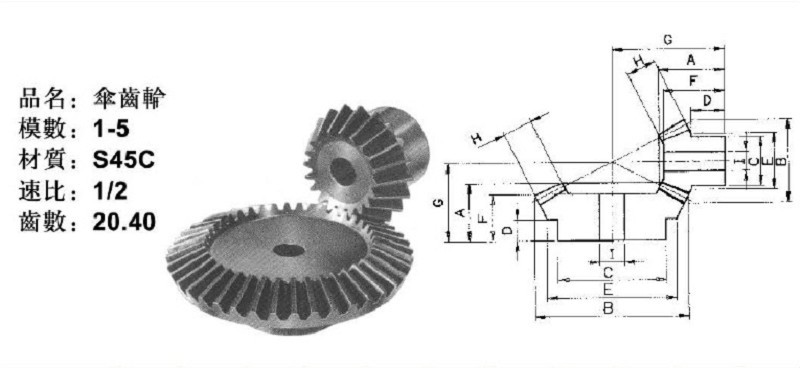

傘齒輪-A102040S

產品規格

品名編號	模數	齒數	A	B	C	D	E	F	G	H	I
A101530S	1	20	16	21.79	16	9.5	16	15.17	30.31	6	6
A101530L	1	40	16	40.89	35	9.5	37	13.63	22.66	6	8
A151530S	1.5	20	27	32.68	25	14.5	25	25.99	45.84	12	10
A151530L	1.5	40	25	61.34	40	14.5	55.64	22.88	33.77	12	12
A201530S	2	20	34	43.58	35	18.5	35	32.44	59.99	15	12
A201530L	2	40	30	81.79	62	15	73	24.64	42.10	15	15
A251530S	2.5	20	44	54.47	40	24	40	41.89	76.27	19	12
A251530L	2.5	40	33	102.24	90	17.5	94.52	27.89	48.03	19	15
A301530S	3	20	51	65.37	50	27	50	48.07	90.42	22	16
A301530L	3	40	42	122.68	80	19	110	35.26	60.36	22	20
A401530S	4	20	55	87.16	62	24	62	50.89	108.73	28	20
A401530L	4	40	46	163.58	95	21	150.16	36	71.02	28	20
A501530S	5	20	69	108.94	80	35.5	80	63.75	140.53	30	20
A501530L	5	40	55	204.47	100	26	187.7	44.95	88.31	30	20
