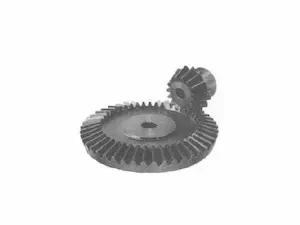

傘齒輪-A102060S

產品規格

品名編號	模數	齒數	A	B	C	D	E	F	G	H	I
A102060S	1	20	21	21.90	15	14	15	20.36	45.05	6	6
A102060L	2	60	25	60.63	35	16.5	56	21.37	32.33	6	10
A152060S	1.5	20	27	32.85	25	14.5	25	26.04	60.26	12	8
A152060L	1.5	60	35	90.95	50	23.5	85.65	30.71	45.14	12	10
A202060S	2	20	35	43.79	34.5	19.5	34.5	33.76	80.29	15	10
A202060L	2	60	50	121.26	60	26	108	43.90	63.81	15	20
A252060S	2.5	20	45	54.74	43	24	43	43.51	100.44	20	16
A252060L	2.5	60	50	151.58	70	25	138.54	43.17	66.90	20	25
A302060S	3	20	50	65.69	50	26	50	47.59	117.46	23	15
A302060L	3	60	51	181.90	90	24	168.14	41.41	71.57	23	25
A402060S	4	20	70	87.59	68	38.5	68	67.67	160.57	30	20
A402060L	4	60	80	242.53	95	34.5	217.86	67.79	107.62	30	25
A502060S	5	20	75	109.49	80	37	80	71.60	190.56	35	25
A502060L	5	60	90	303.16	140	41	227.07	78.84	125.24	35	25
